一、开发环境

  • macOS Big Sur (11.1)
  • UE4.26.1 Source
  • UnLua + Lua5.3.6
  • VSCode1.53.0 + EmmyLua0.3.49

参考:https://github.com/EmmyLua/VSCode-EmmyLua/issues/58 配置

emmylua_new supports Windows/Mac/Linux platform. step1: insert that code to main file

package.cpath = package.cpath .. ";/Users/andrewstarks/.vscode/extensions/tangzx.emmylua-0.3.28/debugger/emmy/mac/emmy_core.dylib"
local dbg = require("emmy_core")
dbg.tcpListen("localhost", 9966)

step2: launch lua application, make sure the inserted code is executed and no error. step3: launch debugger in the vscode side, it should work

二、现象描述

调试简单的Lua没问题,直接./lua mylua.lua


-- package.cpath = package.cpath .. ";/Users/xbpiao/.vscode/extensions/tangzx.emmylua-0.3.49/debugger/emmy/mac/emmy_core.dylib"
-- package.cpath = package.cpath .. ";/Users/xbpiao/work/github/EmmyLuaDebugger/x86/emmy_core/Debug/emmy_core.53.dylib"
package.cpath = package.cpath .. ";/Users/xbpiao/work/github/EmmyLuaDebugger/x86/emmy_core/Debug/emmy_core.dylib"
print("this is test! ---------->begin")
local dbg = require("emmy_core")
print("this is test! ---------->11111111111")
if (dbg ~= nil) then
    print("dbg ~= nil")
else
    print("dbg == nil")
end

dbg.tcpListen("localhost", 9966)
print("dbg.tcpListen(\"localhost\", 9966)")
dbg.waitIDE(30000)
dbg.breakHere()

print("this is test! ---------->end")

print("this is test debug!!!!!!")

vscode EmmyLual默认配置:

{
    // Use IntelliSense to learn about possible attributes.
    // Hover to view descriptions of existing attributes.
    // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
    "version": "0.2.0",
    "configurations": [
        {
            "type": "emmylua_new",
            "request": "launch",
            "name": "EmmyLua New Debug",
            "host": "localhost",
            "port": 9966,
            "ext": [
                ".lua",
                ".lua.txt",
                ".lua.bytes"
            ],
            "ideConnectDebugger": true
        }
    ]
}

但调试 UE4.26.1 + UnLua 一断点UE4Editor就crash,官方的https://github.com/Tencent/UnLua 就可以重现。

三、问题原因

感谢开源的 https://github.com/EmmyLua/EmmyLuaDebugger 直接Debug调试一波。 发现 Debugger::GetVariable 无限循环递归堆栈溢出导致的crash https://github.com/xbpiao/EmmyLuaDebugger/blob/c37ede5580c7b5654feb735c73659ba99bf9d792/emmy_core/emmy_debugger.cpp#L242

临时解决就是限制递归次数,大过年的临时限制188次

https://github.com/xbpiao/EmmyLuaDebugger/tree/fix_DebuggerGetVariable_Infinite_loop

#ifndef EMMY_CORE_GETVARIABLE_LIMIT
#define EMMY_CORE_GETVARIABLE_LIMIT 188
#endif

简单看了下是UObject -> ParentClass -> metatable -> metatable 无限转下去喽!

由于是临时方案暂不提交 PR ,有空再测试Windows平台找到较完美的方案再说。

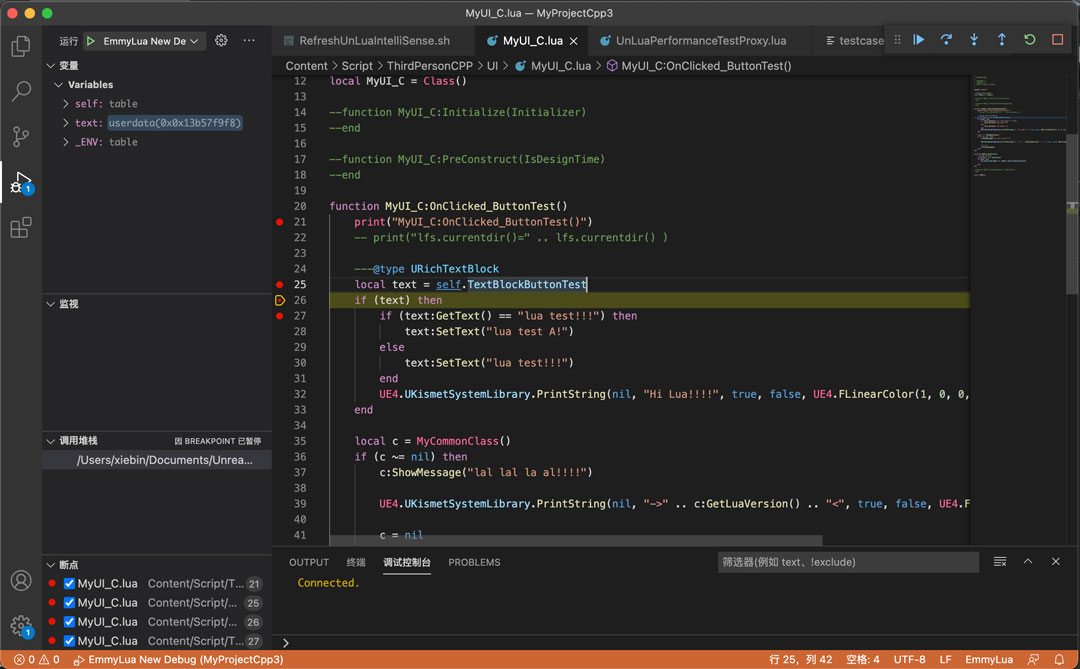

macosx_emmylua_debug

如果你懒得编译也可以下载: emmy_core.dylib
